Transmit data swiftly and
seamlessly
Real-time, uninterrupted data flow for on-time billing and happy customers
The distinguishing technology
ImGATI’s
Robust Communication Integration
RF-mesh and cellular communication combined in a single pluggable module, Kimbal’s In-meter Gateway is the simplest and smartest way to deploy RF-mesh quickly and without any cumbersome planning for efficient data flow between connected smart meters and central systems, driving economical and uninterrupted energy measurement while meeting industry standards for regulatory compliance.
Meet ImGATI
An In-meter Gateway is enabled by RF and backhaul cellular communication technologies for reliable and resourceful real-time data flow that drastically reduces the dependency on standalone gateways by up to 90%
Top features
Hot Swappable

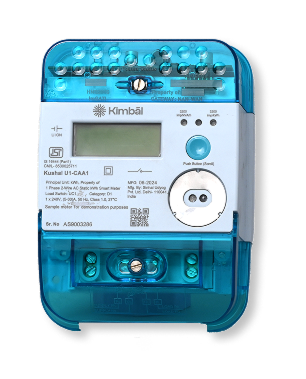

Easily and safely insert in a commissioned meter for creating instant and reliable RF-mesh support.
Reliable data transmission
Ensures reliable, resourceful, and real-time data transfer both locally within the meter network and remotely to the central server.
Strengthen the mesh hassle-free
Adding one in-meter gateway can create upto
Cellular backhaul communication
Smart meter data packets are transmitted to and received from the central server through the cellular network.
Low power consumption
Encourages energy-efficient operation while also extending the battery life of the device.
Robust hardware capacity
The new in-meter gateway supports seamless data flow between up to 150- 200 meters.
Firmware updates
Supports over-the-air (OTA) updates, making maintenance easier and enabling quick feature upgrades.
Battery support
The component has its own battery that will keep the data packets in the RF sink for up to 30 minutes in case of a power outage.
How does this help?
Avoid Gateway Vandalism
Fewer standalone gateways mean a reduced scope of physical damage, whether intended or natural.
Negligent to nil deployment planning
An economical solution that requires no cluster formation and can deliver RF-mesh communication support for a group of 2-3 meters, too, to up to 150 meters.
Uninterrupted communication
RF-mesh and cellular communication combined in a single module drives robust data flow ascertaining high performance.
Easy to port and install
It is an easy-to-carry component that can be installed quickly and without any major interruption.
Cost-competitive
Reduced deployment, maintenance and replacement costs make the overall solution resourceful and cost-effective.
Improved signal coverage
Add additional RF nodes quickly and without hassle to provide wider and more consistent signal coverage while reducing dead zones within the cluster.
Avoid overloading
The system’s architecture is built to support intelligent connection and routing between devices within the cluster without overloading.
Network resilience in dynamic environments
In complex environments(e.g., construction sites, industrial zones, et.al.) in-meter gateway offers the flexibility for the network to swiftly overcome layout challenges and other obstacles.
Frequently Asked
Questions
What is Kimbal’s In-meter Gateway ImGATI and how does it work?
ImGATI is Kimbal’s In-meter Gateway designed for Advanced Metering Infrastructure (AMI) deployments. It combines RF mesh and cellular communication in a single pluggable module that fits inside a compatible smart meter. ImGATI collects data from nearby smart meters and securely transmits it to the Head End System (HES), reducing the need for standalone gateways while supporting reliable communication across the network.
Why should utilities use Kimbal’s In-meter Gateway ImGATI?
Utilities often face challenges such as communication gaps, gateway maintenance, vandalism, and high deployment costs. Kimbal’s In-meter Gateway addresses these challenges by combining RF mesh and cellular communication in one module. It reduces the number of standalone gateways required, simplifies deployment, and supports reliable data transmission across the smart meter network.
How does Kimbal’s In-meter Gateway ImGATI reduce the need for standalone gateways?
Kimbal’s In-meter Gateway ImGATI works as both an RF mesh node and a cellular backhaul device. It collects data from nearby smart meters and sends it directly to the central system through the cellular network. This design removes the need for standalone gateways, helping utilities lower infrastructure and maintenance costs. An in-meter gateway is particularly beneficial in:
It provides greater flexibility while maintaining reliable communication across the AMI network.
- Large-scale smart meter deployments
- Areas with sparse meter density
- Locations where installing standalone gateways is difficult
- Dense urban neighbourhoods requiring additional RF nodes
- Industrial zones and dynamic environments where network layouts frequently change
It provides greater flexibility while maintaining reliable communication across the AMI network.
How does an In-meter Gateway improve smart meter communication?
An In-meter Gateway acts as a gateway within the RF mesh network. It collects data from nearby smart meters and securely sends it to the Head-End System (HES) using the cellular network. Its communication performance is similar to a standalone gateway, making deployment simpler and reducing the need for separate gateway installations.
Can utilities install an In-meter Gateway without replacing existing smart meters?
Yes. Utilities can insert the hot-swappable module into compatible commissioned smart meters without replacing the meter. The installation process takes less time and causes minimal disruption to consumers, making it easier to strengthen communication networks in existing AMI deployments.
How does Kimbal’s In-meter Gateway ImGATI improve RF mesh coverage?
Kimbal’s gateway ImGATI adds more RF communication points to the network. This helps smart meters find better communication paths, reduces dead zones, and improves signal coverage across the deployment area. Utilities can also expand the RF mesh network without installing additional standalone gateways.
Does Kimbal’s In-meter Gateway ImGATI require detailed RF network planning?
No. Utilities do not need extensive cluster planning before deployment. They can install Kimbal’s gateway where additional communication support is required and strengthen the RF mesh network quickly. This approach saves deployment time and reduces planning effort.
How does Kimbal’s gateway ImGATI help utilities reduce AMI deployment costs?
Kimbal’s in-meter-gateway, ImGATI, combines RF mesh and cellular communication in one module, so utilities can deploy fewer standalone gateways across the network. This reduces installation effort, infrastructure requirements, maintenance visits, and replacement costs. Because utilities can strengthen RF communication without extensive cluster planning, ImGATI also helps speed up AMI deployment.
How does Kimbal’s In-meter Gateway ImGATI help prevent gateway vandalism?
Standalone gateways often remain exposed in public locations, making them vulnerable to damage or theft. Kimbal’s In-meter Gateway ImGATI sits inside the smart meter, IMG meter has a capability to record temper, hence this is more secure.
What happens to the In-meter Gateway if there is a power outage?
Kimbal’s In-meter Gateway ImGATI includes its own battery. During a power outage, the battery keeps the RF sink active for up to 30 minutes. This helps retain data packets and supports communication until power returns.
Does Kimbal’s In-meter Gateway ImGATI support remote firmware updates?
Yes, Kimbal’s gateway ImGATI supports Over-the-Air (OTA) firmware updates. Utilities can update software, add new features, and install security improvements remotely without visiting each installation site. This reduces field visits and simplifies device management.
Can Kimbal’s In-meter Gateway ImGATI support both small and large AMI deployments?
Yes. Utilities can deploy Kimbal’s gateway ImGATI in small meter clusters, dense urban areas, or large AMI projects. The modular design allows utilities to expand communication coverage as the smart meter network grows.
Can utilities strengthen an existing RF mesh network with Kimbal’s In-meter Gateway ImGATI?
Yes. Utilities can install additional In-meter Gateways wherever they need stronger communication. The gateway adds new RF nodes to the network, improves signal coverage, and creates additional communication paths without major infrastructure changes.
How does Kimbal’s In-meter Gateway ImGATI perform in changing network environments?
Construction activity, new buildings, and changing site conditions can affect RF communication. Kimbal’s In-meter Gateway ImGATI, helps the network adapt by creating additional communication paths between smart meters. This allows utilities to maintain reliable communication even as the environment changes.
Is Kimbal’s In-meter Gateway suitable for large-scale smart meter projects?
Yes. Kimbal’s gateway supports utility-scale AMI deployments by simplifying communication infrastructure. Utilities can expand the network as new smart meters come online without installing large numbers of standalone gateways, making future network growth easier to manage.
What are the key benefits of Kimbal’s ImGATI In-meter Gateway?
Kimbal’s ImGATI offers several advantages, including:
- Hybrid RF-Mesh and cellular communication
- Up to 90% lower dependence on standalone gateways
- Support for 150–200 connected meters
- Hot-swappable installation
- OTA firmware updates
- Battery backup during outages
- Low power consumption
- Improved RF coverage
- Lower deployment and maintenance costs
- Greater network resilience in complex environments
When should a utility deploy an in-meter gateway instead of a standalone gateway?
Utilities can deploy an in-meter gateway when they need to strengthen RF mesh coverage, improve communication reliability, or expand an existing AMI network without installing additional standalone gateways. It is particularly useful in areas where standalone gateway installation is difficult or where network topology changes over time.
Does the in-meter gateway support large-scale AMI deployments?
Yes. ImGATI is designed for utility-scale smart metering projects. Each gateway can communicate with approximately 150–200 smart meters, making it suitable for large deployments while reducing the number of standalone gateways required.
Can ImGATI support future AMI network expansion?
Yes. Utilities can deploy additional in-meter gateways as their smart meter network grows. This scalable approach enables communication infrastructure to expand alongside meter installations without major changes to the overall network architecture.
Does the in-meter gateway require additional installation space?
No. Since the communication module is installed inside the smart meter, it eliminates the need for separate gateway enclosures, poles, cabinets, or additional installation infrastructure.
Is ImGATI compatible with Kimbal’s AMI ecosystem?
Yes. ImGATI is designed to integrate seamlessly with Kimbal’s smart metering ecosystem, including Kushal smart meters, Vayu RF Mesh communication infrastructure, and the Vaani Head-End System (HES), enabling end-to-end AMI communication.
What factors should utilities consider before deploying an in-meter gateway?
Utilities should evaluate factors such as RF mesh coverage, meter density, communication reliability, network expansion plans, and the availability of cellular connectivity. In-meter gateways are particularly effective in locations where additional RF nodes can improve network performance without requiring new standalone gateway installations.
